Popular Cloud Design pattern, Part 3: Command and Query Responsibility Segregation (CQRS), Event Sourcing and Materialized View

CQRS: Command And Query Responsibility Segregation

Segregate operations that read data from operations that update data by using separate interfaces. This can maximize performance, scalability, and security. Supports the evolution of the system over time through higher flexibility, and prevents update commands from causing merge conflicts at the domain level.


In traditional architectures, the same data model is used to query and update a database. That's simple and works well for basic CRUD operations. In more complex applications, however, this approach can become unwieldy. For example, on the read side, the application may perform many different queries, returning data transfer objects (DTOs) with different shapes. Object mapping can become complicated. On the write side, the model may implement complex validation and business logic. As a result, you can end up with an overly complex model that does too much.
Read and write workloads are often asymmetrical, with very different performance and scale requirements.
Solution

CQRS addresses separates reads and writes into separate models, using commands to update data, and queries to read data.
  • Commands should be task based, rather than data centric. ("Book hotel room", not "set ReservationStatus to Reserved").
  • Commands may be placed on a queue for asynchronous processing, rather than being processed synchronously.
  • Queries never modify the database. A query returns a DTO that does not encapsulate any domain knowledge.
The models can then be isolated, as shown in the following diagram, although that's not an absolute requirement.
For greater isolation, you can physically separate the read data from the write data. In that case, the read database can use its own data schema that is optimized for queries. For example, it can store a materialized view (Generate prepopulated views over the data in one or more data stores when the data isn't ideally formatted for required query operations. This can help support efficient querying and data extraction, and improve application performance.) of the data, in order to avoid complex joins or complex O/RM mappings. It might even use a different type of data store. For example, the write database might be relational, while the read database is a document database.
If separate read and write databases are used, they must be kept in sync. Typically this is accomplished by having the write model publish an event whenever it updates the database. Updating the database and publishing the event must occur in a single transaction.

When to use this pattern

Consider CQRS for the following scenarios:
  • Collaborative domains where many users access the same data in parallel. CQRS allows you to define commands with enough granularity to minimize merge conflicts at the domain level, and conflicts that do arise can be merged by the command.
  • Task-based user interfaces where users are guided through a complex process as a series of steps or with complex domain models. The write model has a full command-processing stack with business logic, input validation, and business validation. The write model may treat a set of associated objects as a single unit for data changes (an aggregate, in DDD terminology) and ensure that these objects are always in a consistent state. The read model has no business logic or validation stack, and just returns a DTO for use in a view model. The read model is eventually consistent with the write model.
  • Scenarios where performance of data reads must be fine tuned separately from performance of data writes, especially when the number of reads is much greater than the number of writes. In this scenario, you can scale out the read model, but run the write model on just a few instances. A small number of write model instances also helps to minimize the occurrence of merge conflicts.
  • Scenarios where one team of developers can focus on the complex domain model that is part of the write model, and another team can focus on the read model and the user interfaces.
  • Scenarios where the system is expected to evolve over time and might contain multiple versions of the model, or where business rules change regularly.
  • Integration with other systems, especially in combination with event sourcing, where the temporal failure of one subsystem shouldn't affect the availability of the others.
This pattern isn't recommended when:
  • The domain or the business rules are simple.
  • A simple CRUD-style user interface and data access operations are sufficient.
Consider applying CQRS to limited sections of your system where it will be most valuable.

Event Sourcing pattern


Instead of storing just the current state of the data in a domain, use an append-only store to record the full series of actions taken on that data. The store acts as the system of record and can be used to materialize the domain objects.
This can simplify tasks in complex domains, by avoiding the need to synchronize the data model and the business domain, while improving performance, scalability, and responsiveness. It can also provide consistency for transactional data, and maintain full audit trails and history that can enable compensating actions.

Context and problem

Most applications work with data, and the typical approach is for the application to maintain the current state of the data by updating it as users work with it. For example, in the traditional create, read, update, and delete (CRUD) model a typical data process is to read data from the store, make some modifications to it, and update the current state of the data with the new values—often by using transactions that lock the data.
The CRUD approach has some limitations:
  • CRUD systems perform update operations directly against a data store, which can slow down performance and responsiveness, and limit scalability, due to the processing overhead it requires.
  • In a collaborative domain with many concurrent users, data update conflicts are more likely because the update operations take place on a single item of data.
  • Unless there's an additional auditing mechanism that records the details of each operation in a separate log, history is lost.
The Event Sourcing pattern defines an approach to handling operations on data that's driven by a sequence of events, each of which is recorded in an append-only store. Application code sends a series of events that imperatively describe each action that has occurred on the data to the event store, where they're persisted.

When to use this pattern

Use this pattern in the following scenarios:
  • When you want to capture intent, purpose, or reason in the data. For example, changes to a customer entity can be captured as a series of specific event types such as Moved homeClosed account, or Deceased.
  • When it's vital to minimize or completely avoid the occurrence of conflicting updates to data.
  • When you want to record events that occur, and be able to replay them to restore the state of a system, roll back changes, or keep a history and audit log. For example, when a task involves multiple steps you might need to execute actions to revert updates and then replay some steps to bring the data back into a consistent state.
  • When using events is a natural feature of the operation of the application, and requires little additional development or implementation effort.
  • When you need to decouple the process of inputting or updating data from the tasks required to apply these actions. This might be to improve UI performance, or to distribute events to other listeners that take action when the events occur. For example, integrating a payroll system with an expense submission website so that events raised by the event store in response to data updates made in the website are consumed by both the website and the payroll system.
  • When you want flexibility to be able to change the format of materialized models and entity data if requirements change, or—when used in conjunction with CQRS—you need to adapt a read model or the views that expose the data.
  • When used in conjunction with CQRS, and eventual consistency is acceptable while a read model is updated, or the performance impact of rehydrating entities and data from an event stream is acceptable.
This pattern might not be useful in the following situations:
  • Small or simple domains, systems that have little or no business logic, or nondomain systems that naturally work well with traditional CRUD data management mechanisms.
  • Systems where consistency and real-time updates to the views of the data are required.
  • Systems where audit trails, history, and capabilities to roll back and replay actions are not required.
  • Systems where there's only a very low occurrence of conflicting updates to the underlying data. For example, systems that predominantly add data rather than updating it.

Materialized View pattern


Generate prepopulated views over the data in one or more data stores when the data isn't ideally formatted for required query operations. This can help support efficient querying and data extraction, and improve application performance.

Context and problem

When storing data, the priority for developers and data administrators is often focused on how the data is stored, as opposed to how it's read. The chosen storage format is usually closely related to the format of the data, requirements for managing data size and data integrity, and the kind of store in use.

However, this can have a negative effect on queries. When a query only needs a subset of the data from some entities, such as a summary of orders for several customers without all of the order details, it must extract all of the data for the relevant entities in order to obtain the required information.

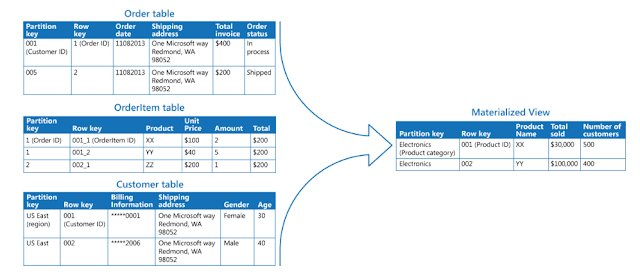

o support efficient querying, a common solution is to generate, in advance, a view that materializes the data in a format suited to the required results set. The Materialized View pattern describes generating prepopulated views of data in environments where the source data isn't in a suitable format for querying, where generating a suitable query is difficult, or where query performance is poor due to the nature of the data or the data store.
These materialized views, which only contain data required by a query, allow applications to quickly obtain the information they need. In addition to joining tables or combining data entities, materialized views can include the current values of calculated columns or data items, the results of combining values or executing transformations on the data items, and values specified as part of the query. A materialized view can even be optimized for just a single query.

When to use this pattern

This pattern is useful when:
  • Creating materialized views over data that's difficult to query directly, or where queries must be very complex to extract data that's stored in a normalized, semi-structured, or unstructured way.
  • Creating temporary views that can dramatically improve query performance, or can act directly as source views or data transfer objects for the UI, for reporting, or for display.
  • Supporting occasionally connected or disconnected scenarios where connection to the data store isn't always available. The view can be cached locally in this case.
  • Simplifying queries and exposing data for experimentation in a way that doesn't require knowledge of the source data format. For example, by joining different tables in one or more databases, or one or more domains in NoSQL stores, and then formatting the data to fit its eventual use.
  • Providing access to specific subsets of the source data that, for security or privacy reasons, shouldn't be generally accessible, open to modification, or fully exposed to users.
  • Bridging different data stores, to take advantage of their individual capabilities. For example, using a cloud store that's efficient for writing as the reference data store, and a relational database that offers good query and read performance to hold the materialized views.
This pattern isn't useful in the following situations:
  • The source data is simple and easy to query.
  • The source data changes very quickly, or can be accessed without using a view. In these cases, you should avoid the processing overhead of creating views.
  • Consistency is a high priority. The views might not always be fully consistent with the original data.
